Modicon - Schneider XBTF011110 Magelis XBT-F Operator Terminal HMI 24V DC
Modicon - Schneider XBTF011110 Magelis XBT-F Operator Terminal HMI 24V DC
Part number XBTF011110
Stock bas : 1 restant(s)
The Modicon (Telemecanique / Square D) XBTF011110 is a Magelis XBT-F series operator terminal with a membrane keypad and a small monochrome display. It serves as the machine-side interface to a controller over its serial ports. The front carries a numeric keypad, arrow keys, ENTER/ALARM, ESC/HOME, MENU/SYST, DEL and a contrast key, plus eight R1-R8 keys flanking the display. Supply is 24V DC, 35W. The rating label shows hazardous-location listing for Class I Div.2 Groups A,B,C,D, Temp Code T5.
Specifications
| Manufacturer | Modicon / Square D / Telemecanique |
| Series | Magelis XBT-F |
| Type | Operator interface terminal (HMI) |
| Supply voltage | 24V DC |
| Power | 35W |
| Display | Small monochrome CRT-style display |

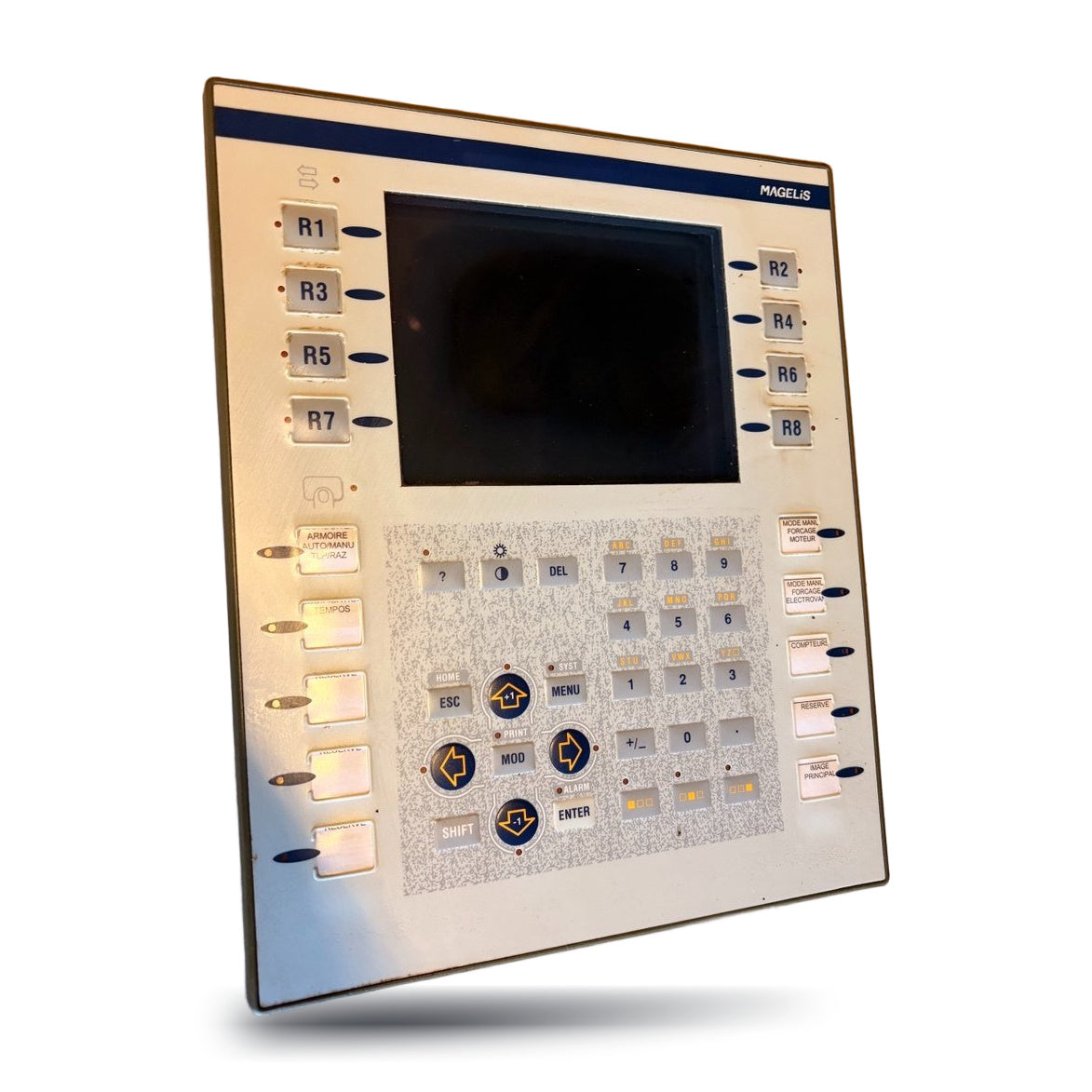

| Keypad | Sealed membrane; numeric 0-9, +/-, ., arrow keys, ENTER/ALARM, MOD/PRINT, ESC/HOME, MENU/SYST, DEL, contrast key |
| Function keys | Eight R1-R8 keys plus French-labelled function keys (MODE PRINCIPAL, RESERVE, COMPTEUR, MODE FORCAGE MOTEUR, ARMOIRE AUTO/MANU, TEMPOS) |
| Serial port | DB9 male |
| Additional port | DB25 |
| Power connection | Green screw terminal block |
| Card slot | Rear slide-in card/module slot (PCMCIA/CardBus-style); label partially reads 'XBTF... 16M...' |

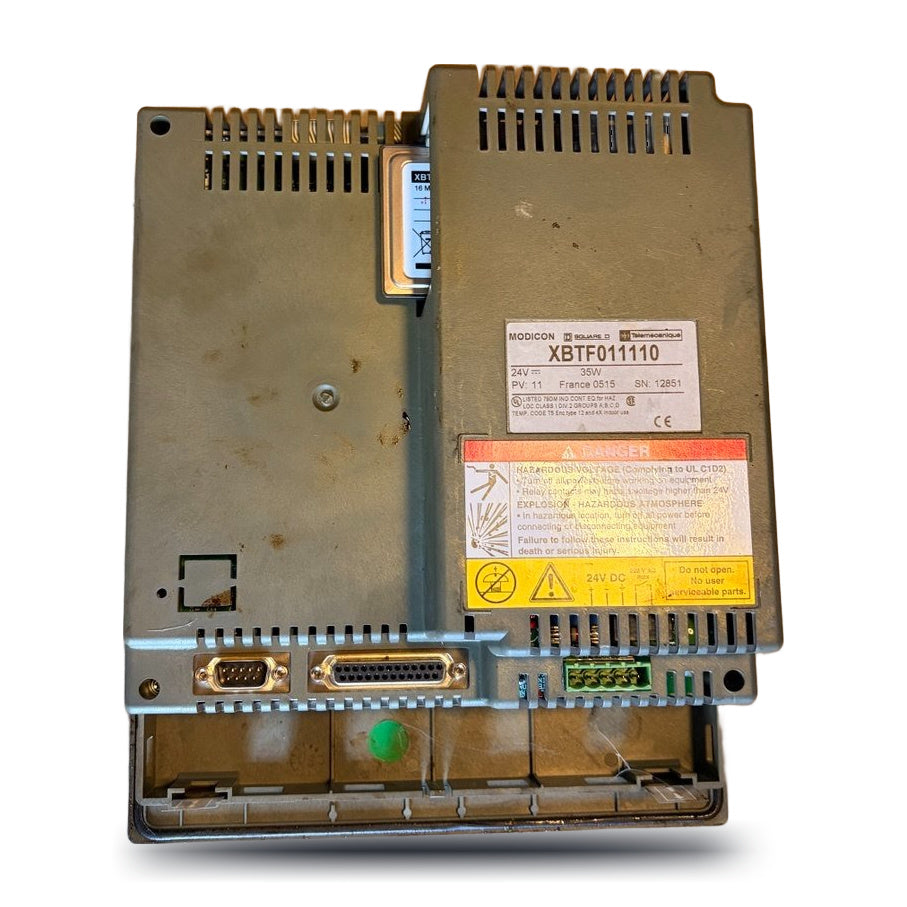

| Rear enclosure | Two-part metal-clad housing with ventilation slots |
| Mounting | Mounting holes at all corners of front housing |
| Hazardous location rating | Class I Div.2 Groups A,B,C,D (UL C1D2 listed); Temp Code T5 |
| Enclosure rating | Type 12 and 4X, indoor use |
| Approvals | CE marked; UL listed for industrial control equipment |
| Label data | PV: 11; France 0515; SN: 12851 |
| Housing | Beige plastic front, grey/metal rear |
| Warning label | Danger - hazardous voltage, do not open, no user serviceable parts |
| Condition | Used-Tested |
| Warranty | 14-30 days depend on the parts |
Condition & testing
Used and tested. Housing shows surface wear, scuffing and grime, with light corrosion spots on the rear metal casing; no visible cracks or broken latches. The display appeared dark in the photographed state. A card is partially inserted in the rear card slot. Do not open the unit: the label warns of hazardous voltage and no user-serviceable parts.
Compatibility
Magelis XBT-F series operator terminal. Application and controller compatibility depend on the loaded project and the card fitted in the rear slot.
What's included
XBTF011110 terminal unit only, with the card shown partially inserted in the rear slot.
Before you order
- The application is stored in the unit and/or the rear card; confirm the project and the card (label partially reads 'XBTF... 16M...') match your machine.
- Front key legends are in French and specific to the original machine; check they suit your application.
- Supply is 24V DC, 35W; confirm your panel supply and cut-out suit before ordering.
- No cables, connectors or mounting hardware are listed as included.
