HEIDENHAIN ND 523 Digital Readout Display Unit IdNr: 532 523-01
HEIDENHAIN ND 523 Digital Readout Display Unit IdNr: 532 523-01
1 left in stock

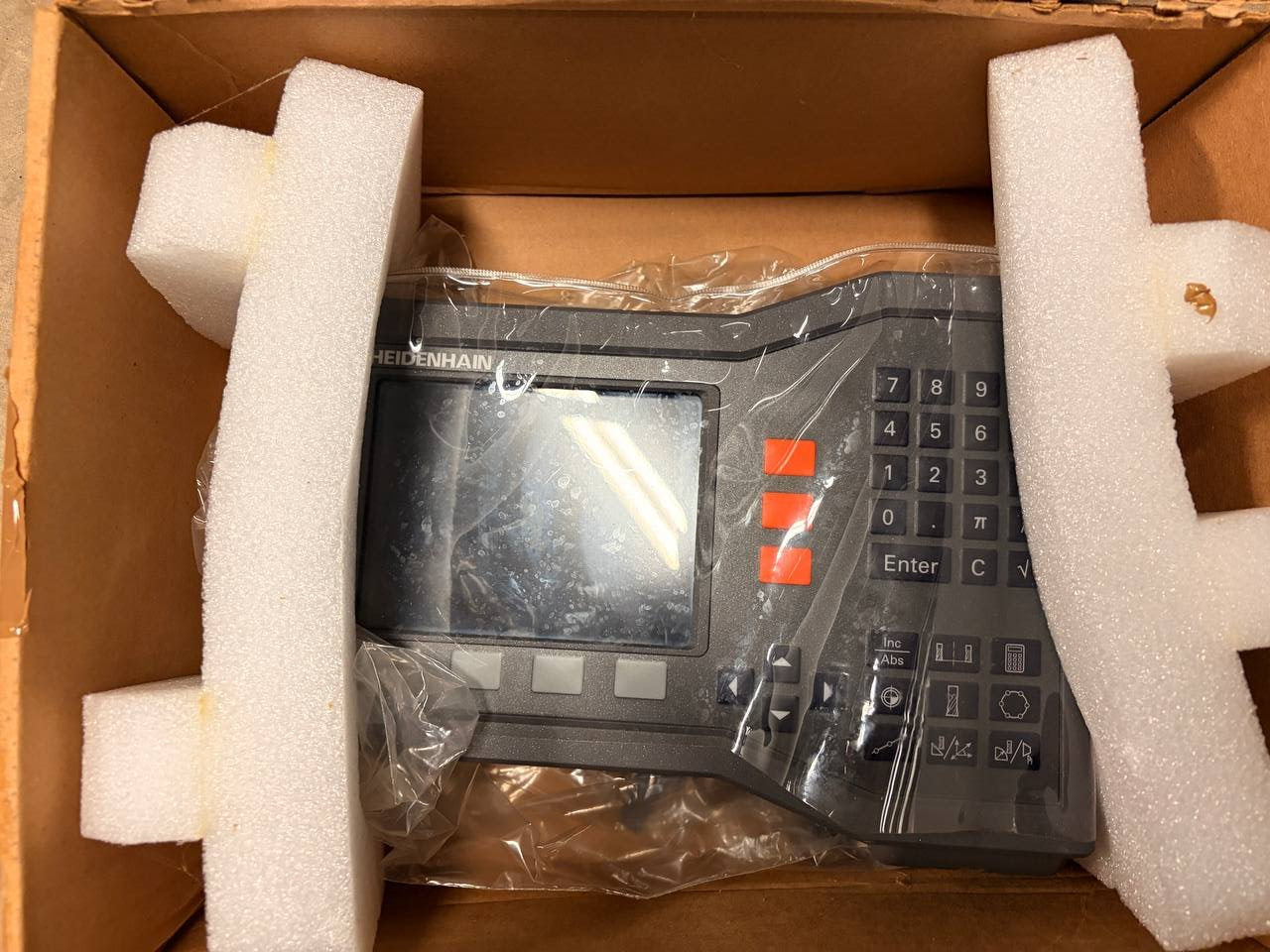

The HEIDENHAIN ND 523 (IdNr: 532 523-01) is a digital readout (DRO) display unit for positional measurement and coordinate display in manual machine tools. Part of the ND 500 series, this console accepts encoder input from linear or rotary scales and presents axis position data on a rectangular LCD screen. The wedge-shaped housing features a membrane keypad with numeric entry (0–9, decimal, pi, Enter, C), three orange soft-key buttons below the display, directional arrow keys, and a column of function icons (axis selection, incremental/absolute mode, measurement functions) with corresponding grey soft-keys along the left edge. This unit is sealed in factory packaging with installation documentation dated December 2013.
Specifications
| Model | ND 523 |
| ID Number | 532 523-01 |

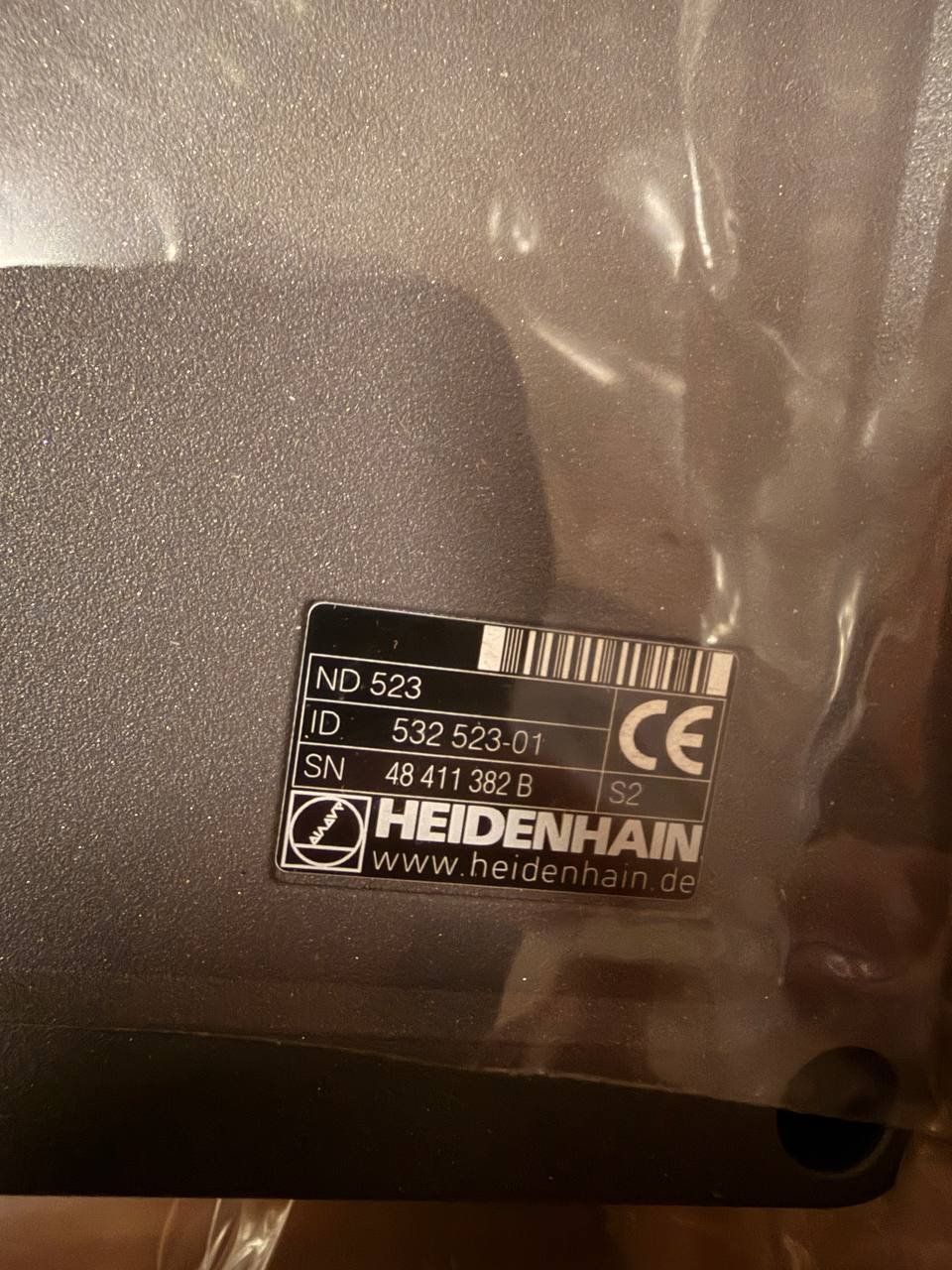

| Serial Number | 48 411 382 B |
| Display | Rectangular LCD |
| Keypad layout | Numeric (0-9, decimal, pi, Enter, C), directional arrows, axis/inc/abs/measurement function keys |
| Soft keys | 3 orange (below display), grey column (left edge) |
| Housing | Wedge-shaped console, dark grey plastic, angled top section |

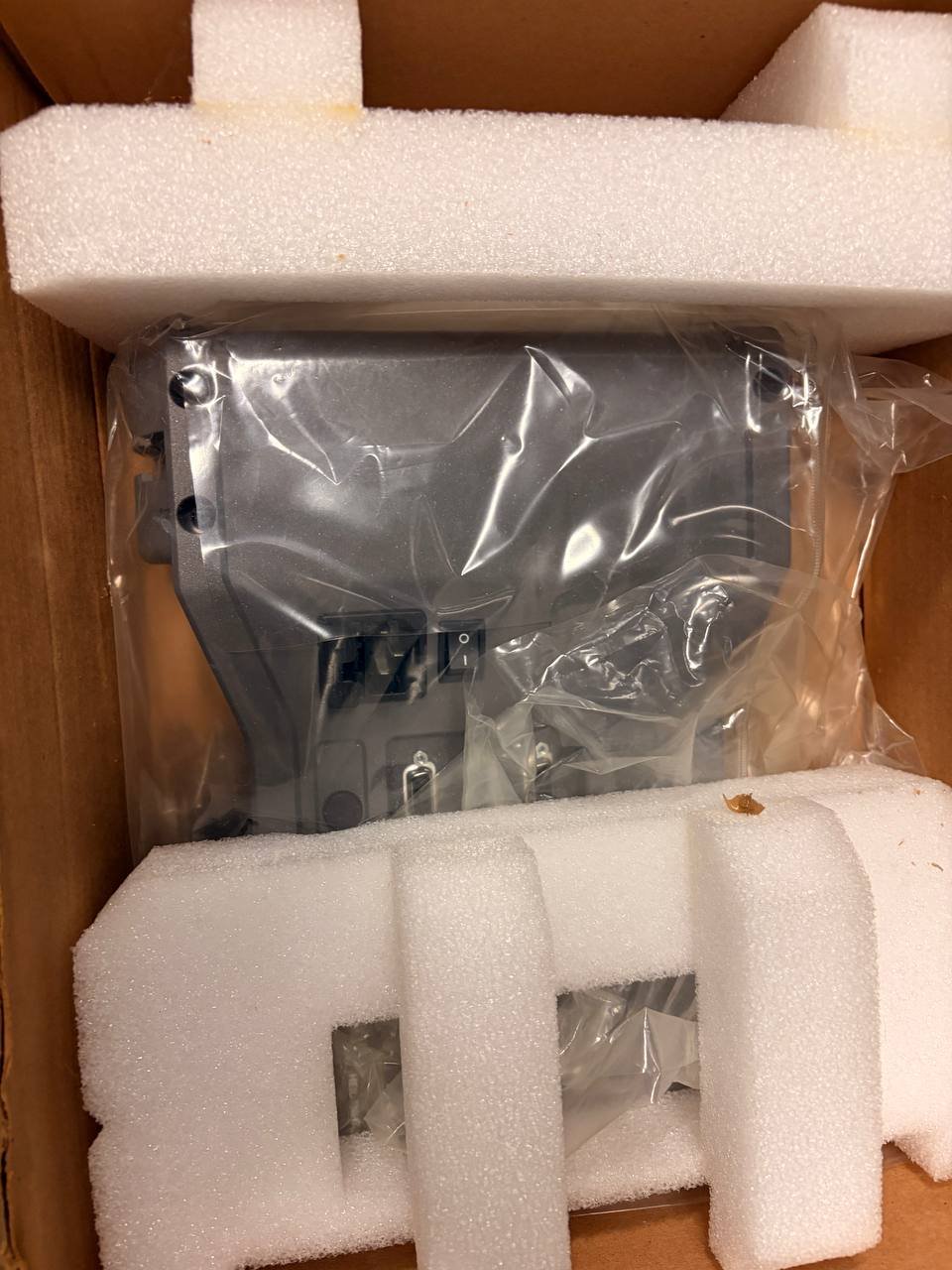

| Rear panel | Mounting bracket with screw holes, rocker power switch, connector recesses |
| Certification | CE mark, S2 |
| Documentation date | 12/2013 |
| Condition | New |
| Warranty | 14-30 days depend on the parts |
Condition & testing
New, factory-sealed in plastic bag with original foam packing and shipping box. Unit shows no wear, damage, or corrosion. Spiral-bound multilingual installation instruction booklet included. Serial number 48 411 382 B. Installation manual dated December 2013. No functional testing performed (new stock).
Compatibility
Compatible with HEIDENHAIN ND 500 series systems
What's included
ND 523 display unit (532 523-01), multilingual installation instruction booklet, original factory packaging
