Heidenhain AE LB 382C Scanning Unit (315420-04) 1Vss Distance-Coded
Heidenhain AE LB 382C Scanning Unit (315420-04) 1Vss Distance-Coded
1 left in stock
The Heidenhain AE LB 382C (Id.Nr. 315420-04) is a scanning unit designed for the LB 382 series large-scale incremental linear encoders. It outputs analog voltage signals at 1 Volt peak-to-peak sinusoidal (1Vss) and features distance-coded reference marks, indicated by the 'C' suffix in the model designation. The full label code AE LB 382C 40.000 1Vss specifies the signal format and accuracy class. This scanning head mounts to LB 382 scale systems and provides position feedback for CNC machines, coordinate measuring equipment, and high-precision motion control applications.
Specifications
| Manufacturer | Heidenhain |
| Model | AE LB 382C |
| Part Number (Id.Nr.) | 315420-04 |
| Full Label Code | AE LB 382C 40.000 1Vss |
| Component Type | Scanning Unit / Reader Head |
| Signal Interface | Analog voltage (1Vss) |
| Output Signal | 1 Volt peak-to-peak sinusoidal |
| Reference Mark Type | Distance-coded (C) |
| Compatible Encoder Series | Heidenhain LB 382 |
| System Type | Large-scale incremental linear encoder |
| Condition | New |
| Warranty | 14–30 days |
Condition & testing

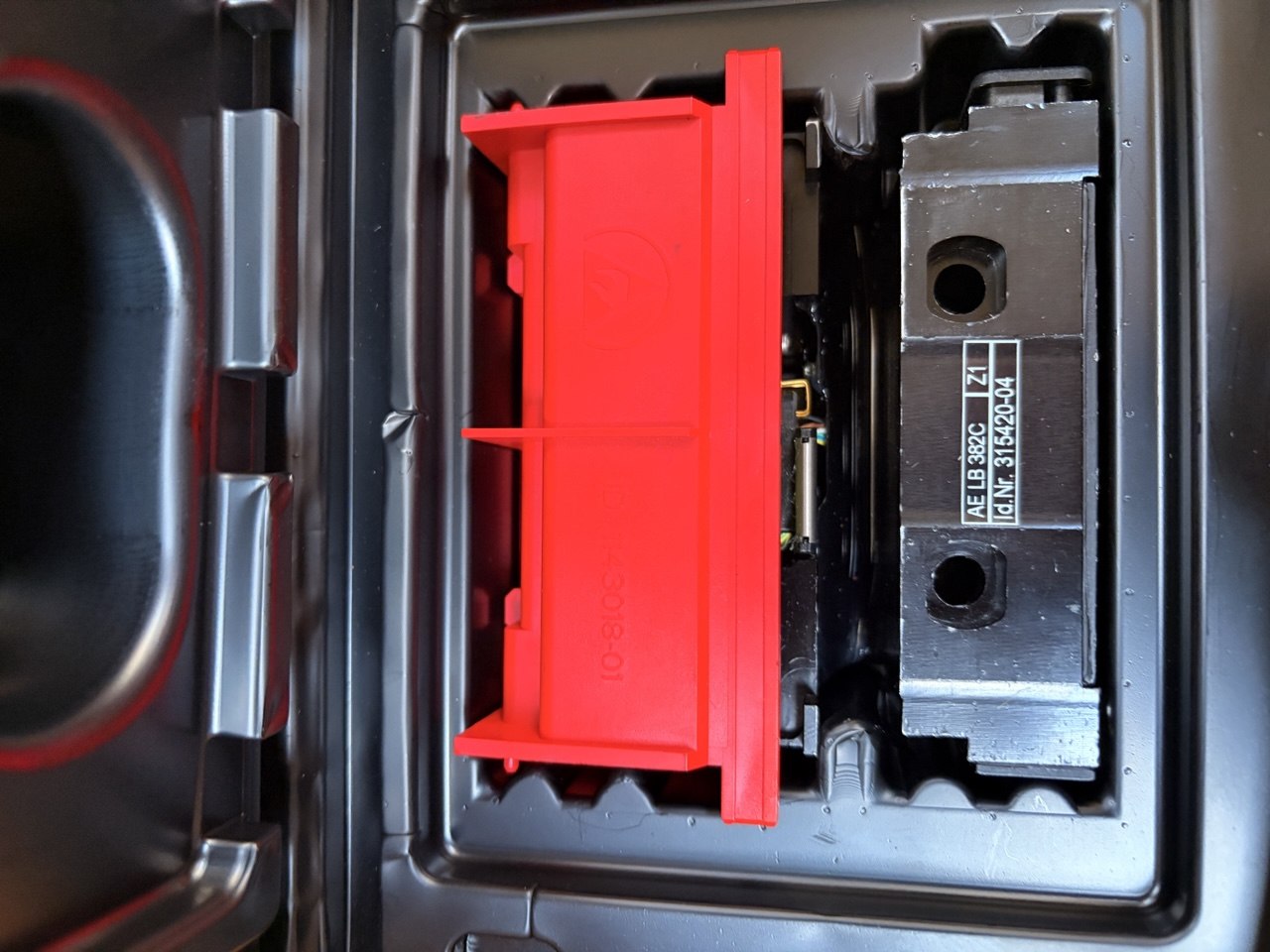

New surplus unit stored in original black plastic tray and cardboard box. Box is not factory-sealed but contents are unused. No signs of installation or field use. Scanning head and mounting hardware are clean with no wear or contamination. Unit has been kept in controlled storage.
Compatibility
Fits Heidenhain LB 382 series large-scale incremental linear encoders
What's included
Scanning unit only (as stored in original tray and box)
