Heidenhain AE LB 301 - IdNr: 284931-01 Scanning Unit
Heidenhain AE LB 301 - IdNr: 284931-01 Scanning Unit
1 left in stock

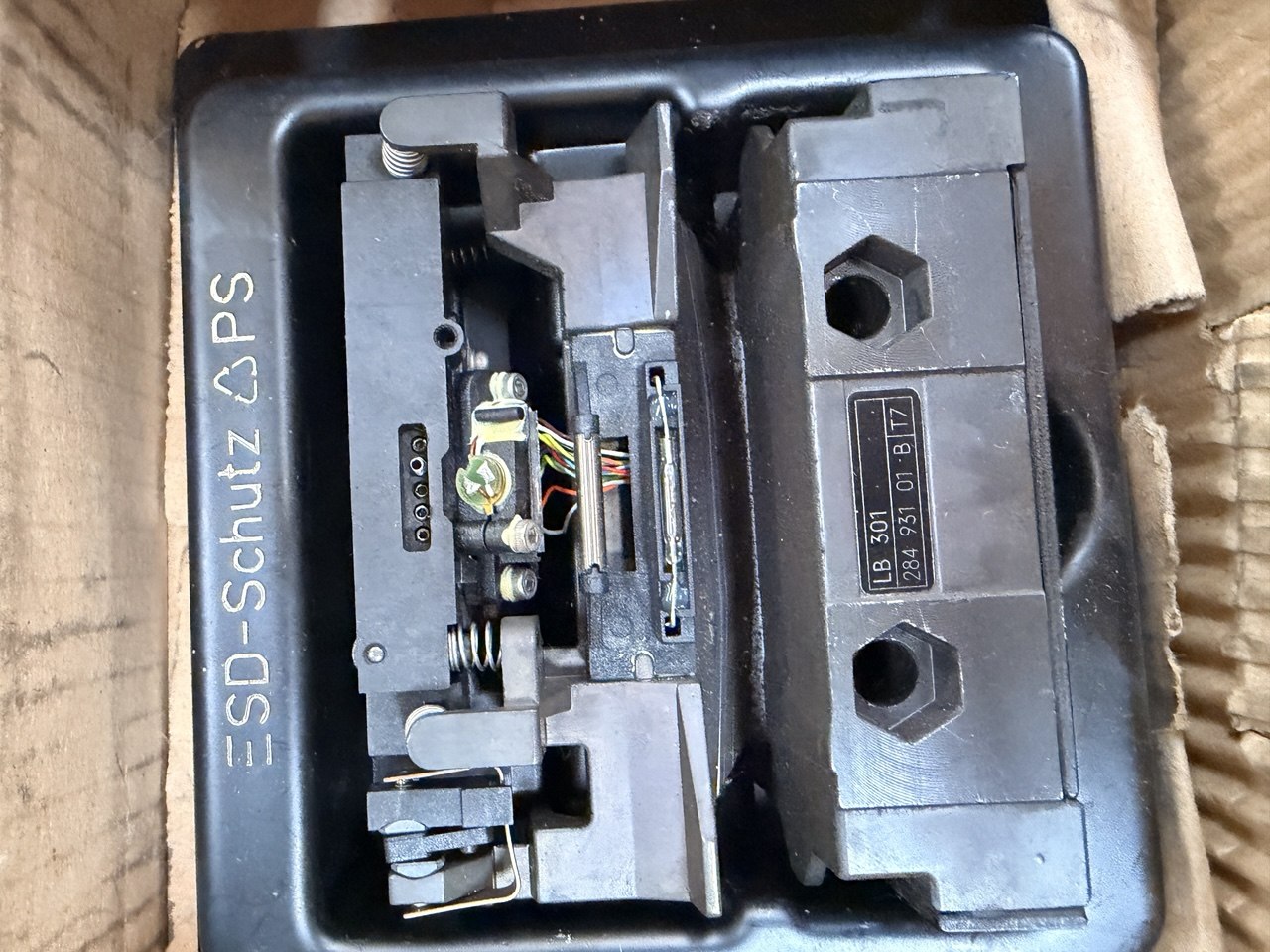

The Heidenhain AE LB 301 (Id.Nr. 284931-01) is a scanning unit designed for large-scale incremental linear encoder systems in the LB 301 series. It outputs analog current signals at approximately 11 µA peak-to-peak sinusoidal current (11µAss) and mounts to the LB 301 tape scale for position feedback in CNC machines, coordinate measuring machines, and precision machining centers. This is the scanning head only; it requires a compatible scale and electronics to function. Also searched as 28493101.
Specifications
| Manufacturer | Heidenhain |
| Part Number | 284931-01 |
| Model | AE LB 301 |
| Component Type | Scanning Unit / Reader Head |
| Signal Interface | Analog current output (11 µAss / 11 µA peak-to-peak sinusoidal) |
| Encoder Compatibility | Heidenhain LB 301 series linear encoders |
| Full Label Code | AE LB 301 100,000 RW 52S12 .. 11µAss 0,00 .. .. 37 01 VE01 |
| Condition | Used-Tested |
| Warranty | 14–30 days |
Condition & testing
This scanning head was removed from a working system and bench-tested to verify signal output integrity. The unit powered on cleanly and produced stable analog current signals consistent with the 11 µA sinusoidal specification. Housing shows normal handling marks and light surface wear from prior installation. Optical scanning window is clean with no damage observed.
Compatibility
Compatible with Heidenhain LB 301 series large-scale incremental linear encoder scales. Requires matching electronics and cable assembly for integration.
What's included
Scanning head unit only (no scale, cables, or mounting hardware)
Compatible & Related
Compatibility notice: Part numbers are listed for identification only. Always confirm the exact part number and revision match your equipment before ordering.
Condition disclosure: Unless stated as new, items are used or refurbished and may show cosmetic signs of prior use. Functional condition is described above.
Independent reseller: Samonde is an independent reseller and is not affiliated with, authorized by, or endorsed by the original manufacturer.
Installation warning: Industrial automation components must be installed and commissioned by qualified personnel. Samonde accepts no liability for damage or injury resulting from incorrect installation or use.
