Heidenhain Power Module UVR 120D - Id.Nr. 390 188-01 - 22 kW
Heidenhain Power Module UVR 120D - Id.Nr. 390 188-01 - 22 kW
Niedriger Lagerbestand: 1 verbleibend
The Heidenhain UVR 120D (Id.Nr. 390 188-01) is a power module for Heidenhain CNC drive systems. It takes a 3x400 V AC supply at 50/60 Hz and feeds the drive axes and spindle through the U, V, W power terminals. The label rates it at 22 kW nominal (PN), 30 kW for 6 minutes at 40% duty (PS6-40%) and 40 kW peak for under 4 seconds, with 33 A nominal input current. Front-panel LEDs show READY, power-fail, DC-link and temperature states. Match the Id.Nr. 390 188-01 against your existing module before ordering.
Specifications
| Manufacturer | Heidenhain |
| Model | UVR 120D |
| Type | Power Module |
| Id.Nr. | 390 188-01 |

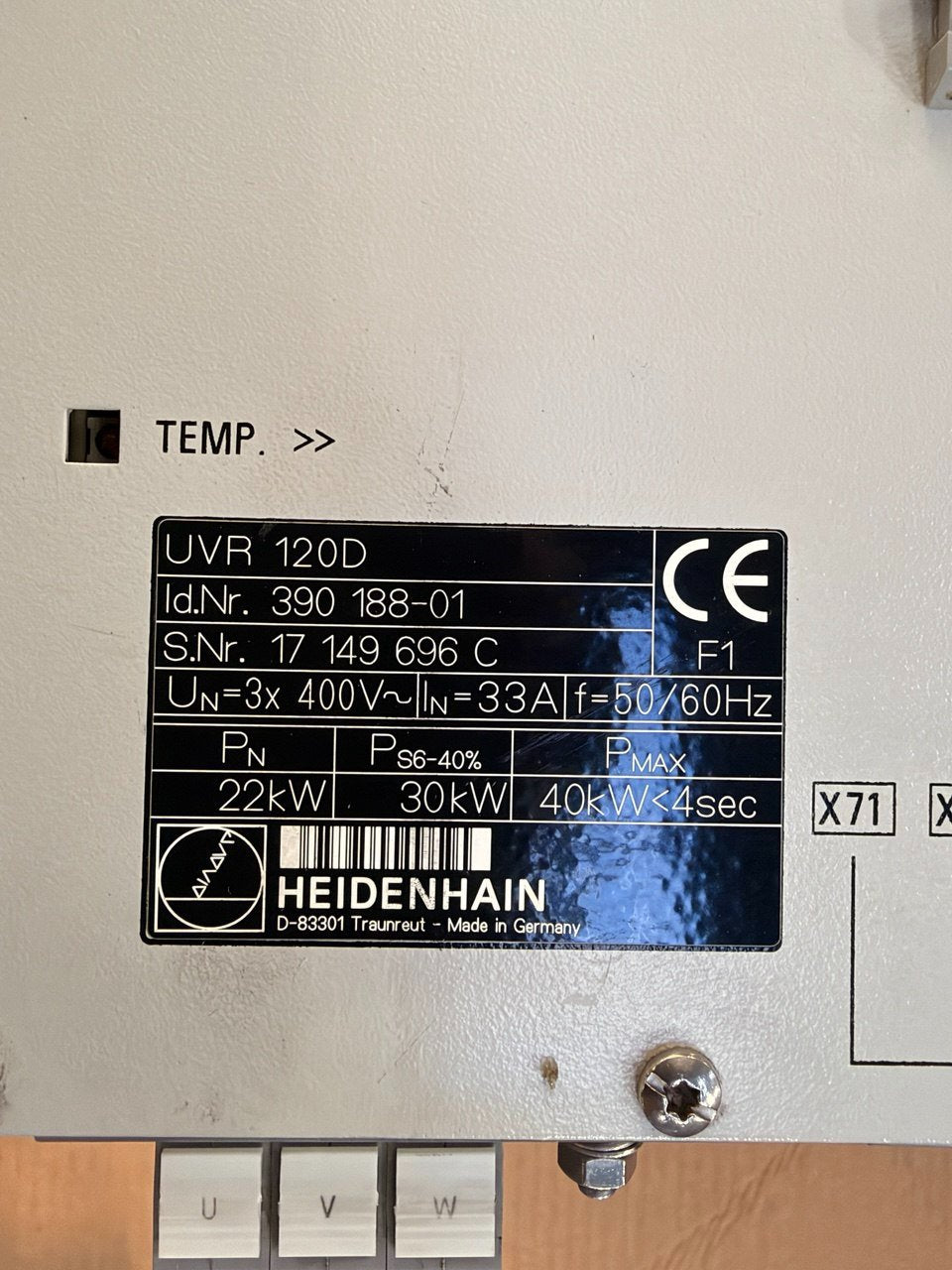

| Serial number | 17 149 696 C |
| Rated input voltage (UN) | 3x 400 V~ |
| Rated current (IN) | 33 A |
| Frequency | 50/60 Hz |
| Rated power (PN) | 22 kW |
| Short-time power (PS6-40%) | 30 kW |
| Peak power (PMAX) | 40 kW < 4 s |
| Power terminals | U, V, W screw terminals |
| Connectors | X69, X70, X71, X72, X74, X79 |
| X70 | Green multi-pin pluggable terminal connector |
| X74 | Two-position screw terminal, +5V / 0V |
| X69, X79 | High-density D-sub style multi-pin connectors |
| X71 / X72 | Green terminal block, axes/spindle wiring |
| Status indicators | READY, RESET, READY UV, POWER RESET, POWER FAIL, UDC-LINK, IDC-LINK, ILEAK, AC FAIL, NC RESET, TEMP., UDC-LINK ON, +5V, 0V |
| Discharge time | 5 min |
| Discharge protection | Hinged warning cover with bleed resistor stud |
| Cooling | Fan behind wire guard, finned heatsink, perforated side panel |
| Grounding | Grounding stud |
| Enclosure | Painted sheet-metal housing with metal faceplate |
| Approvals | CE |
| Origin | Made in Germany, D-83301 Traunreut |
| Label code | F1 |
| Condition | Used |
| Warranty | 14-30 days depend on the parts |
Condition & testing

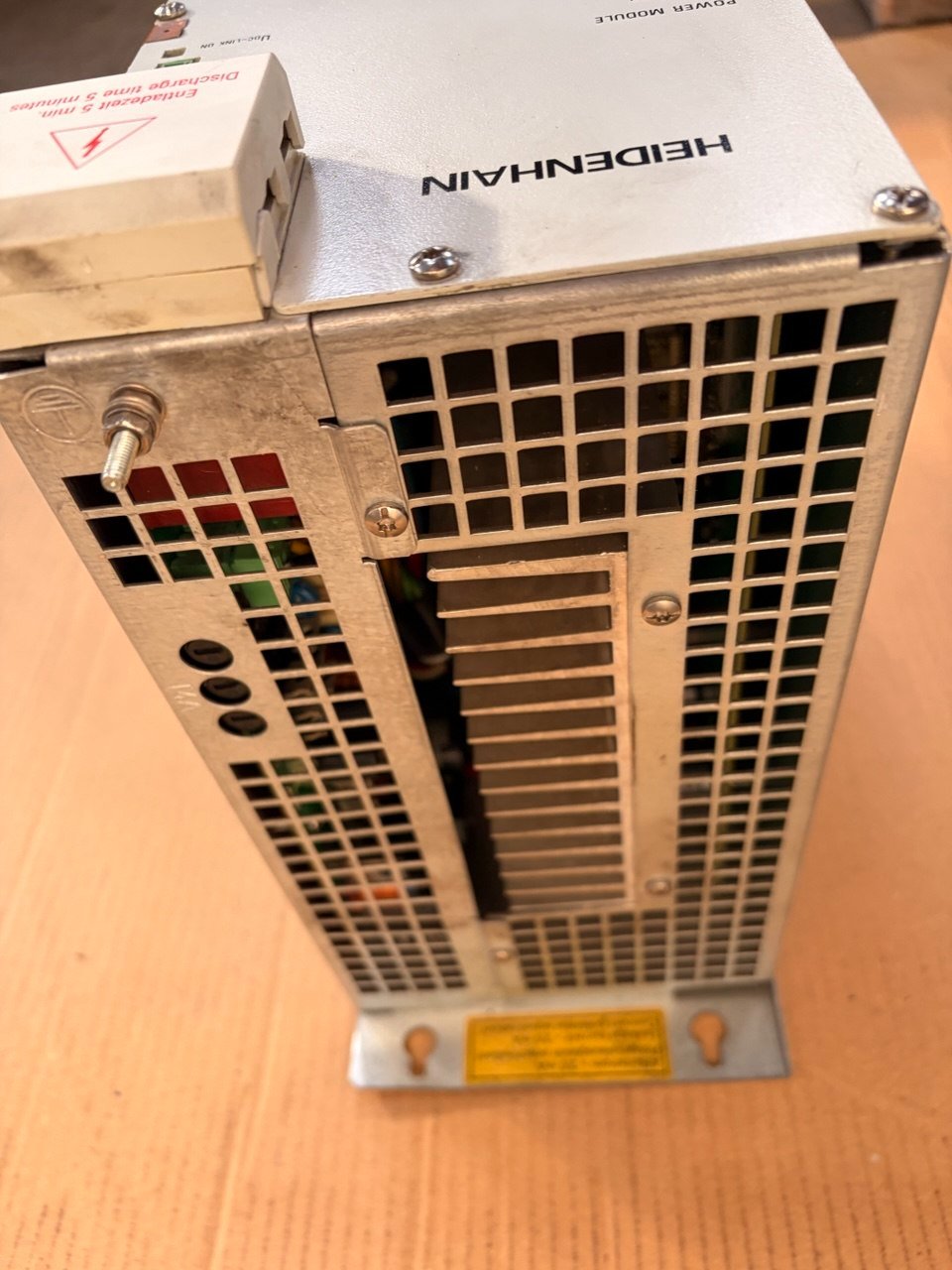

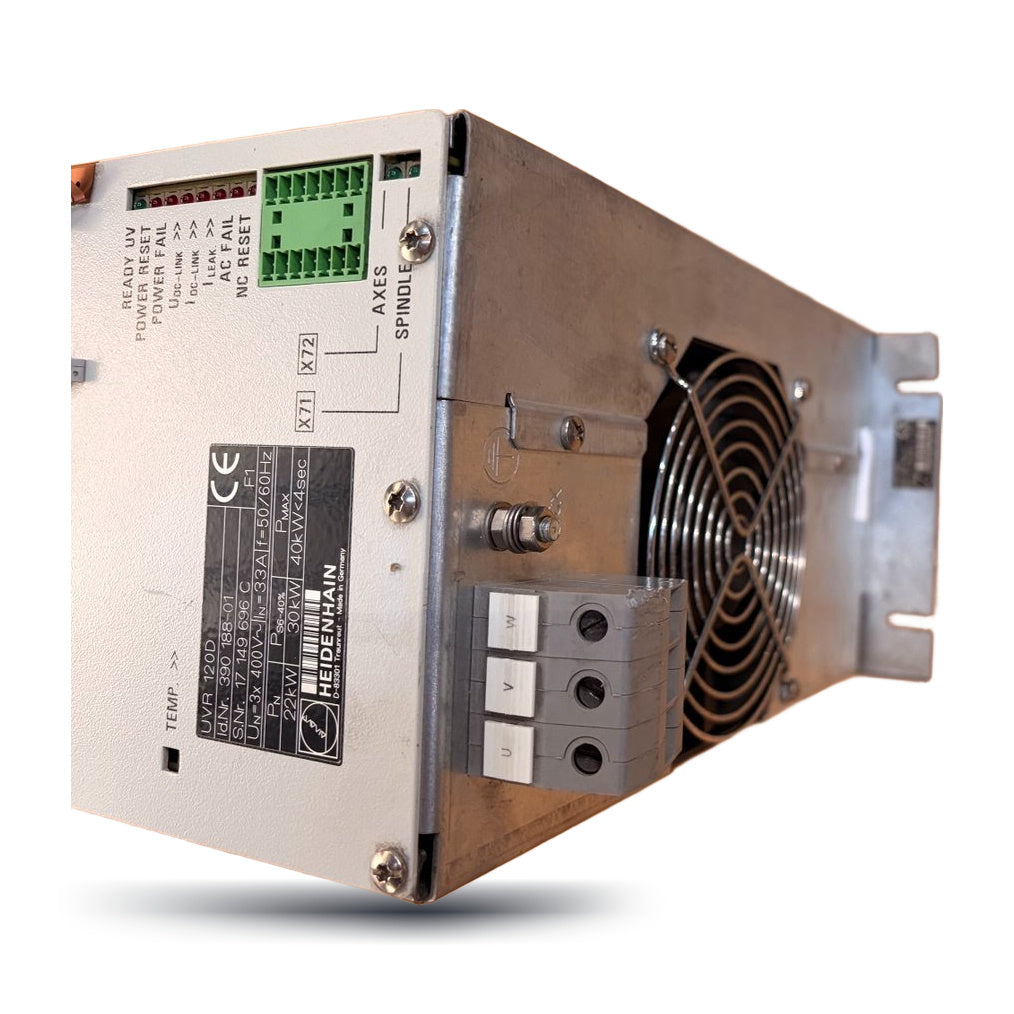

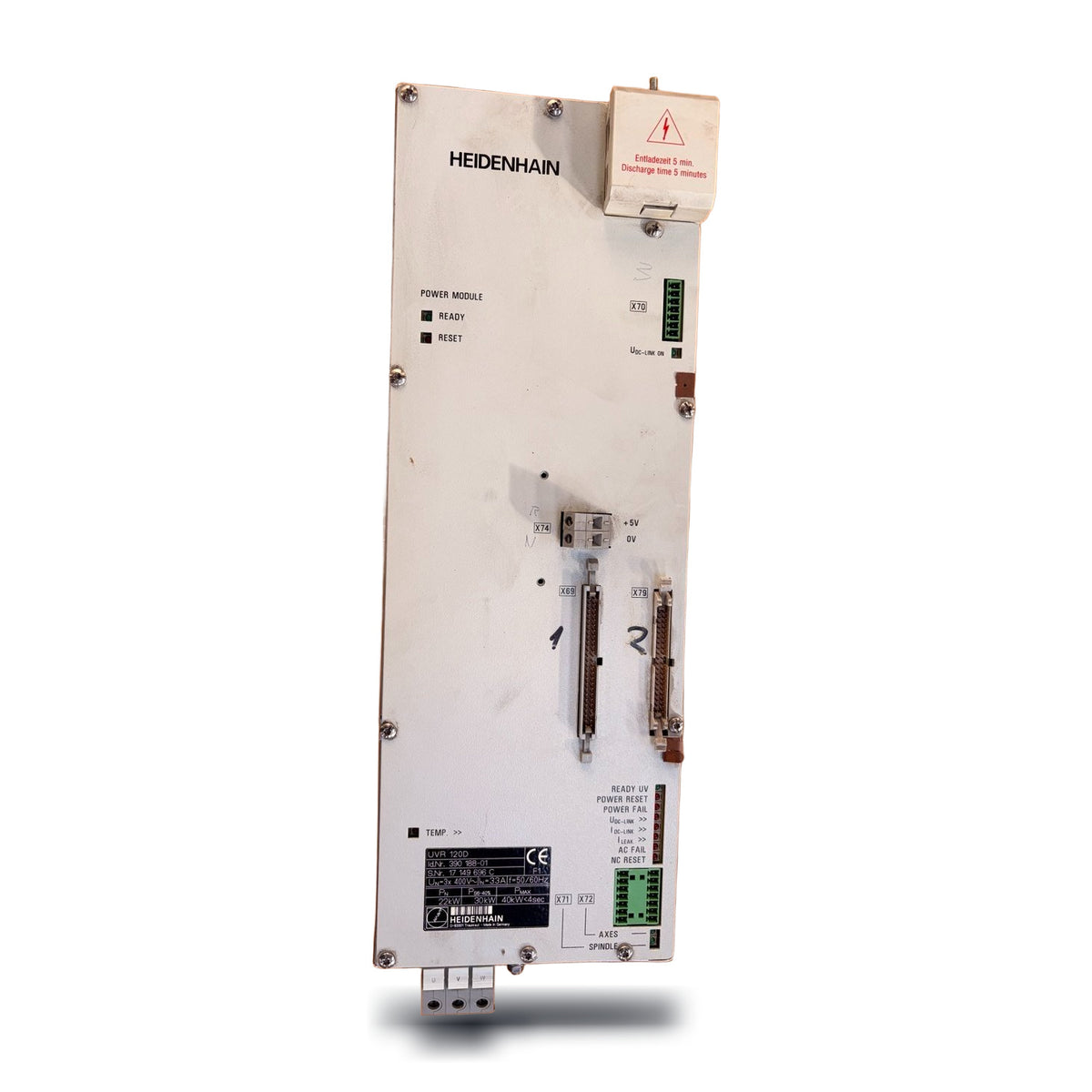

Used unit removed from a working machine. Surface dust and handling wear on the housing; no visible damage. Heatsink, cooling fan with wire guard, front panel and connectors are intact in the photos. Label is legible.
Compatibility
Heidenhain Id.Nr. 390 188-01 power module, UVR 120D. Confirm the Id.Nr. against the module being replaced.
What's included
1x Heidenhain UVR 120D power module (Id.Nr. 390 188-01). No cables or accessories.
Before you order
- Match Id.Nr. 390 188-01 exactly; the UVR 120D name alone does not identify the variant.
- Supply is 3x 400 V, 50/60 Hz; the rated input current is 33 A.
- Wait the 5-minute discharge time after switching off before touching terminals or removing connectors.
- Cables, connectors and mating plugs are not included.
