Heidenhain MC 420 G2 - IdNr: 517 535-02 CNC Main Computer
Heidenhain MC 420 G2 - IdNr: 517 535-02 CNC Main Computer
Part number 517 535-02
Also written as 51753502·517535-02
1 left in stock
Heidenhain 517 535-02 is an MC 420 G2 main computer unit, the rack-style processing module of a Heidenhain CNC control. It carries the control's processor board and connects to the rest of the system through the numbered X-designator interfaces on its panel, including D-sub, Ethernet, USB and pluggable terminal connections. The label identifies the unit as MC 420 G2, serial number S.Nr. 19 845 515 A, made in Traunreut, Germany. It holds two 2.5" hard disk drives in an internal sub-rack. Check the ID label against your machine's control configuration before ordering. Also searched as 51753502.
Specifications
| Manufacturer | Heidenhain |
| Part number | 517 535-02 |
| Model | MC 420 G2 |

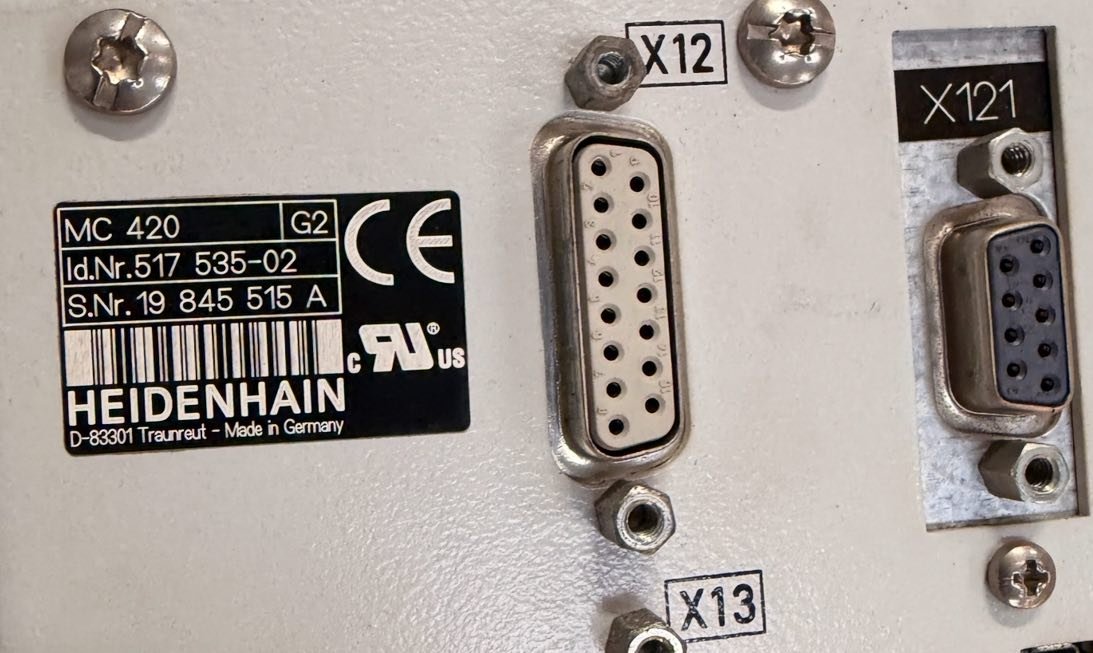

| Serial number | S.Nr. 19 845 515 A |
| Origin | D-83301 Traunreut, Made in Germany |
| Approvals | CE, cULus |
| Form factor | Rack-style sheet-metal enclosure, light grey, horizontal orientation |
| Mounting | Mounting tabs/slots at both ends; Phillips head screws on flat painted faceplate |

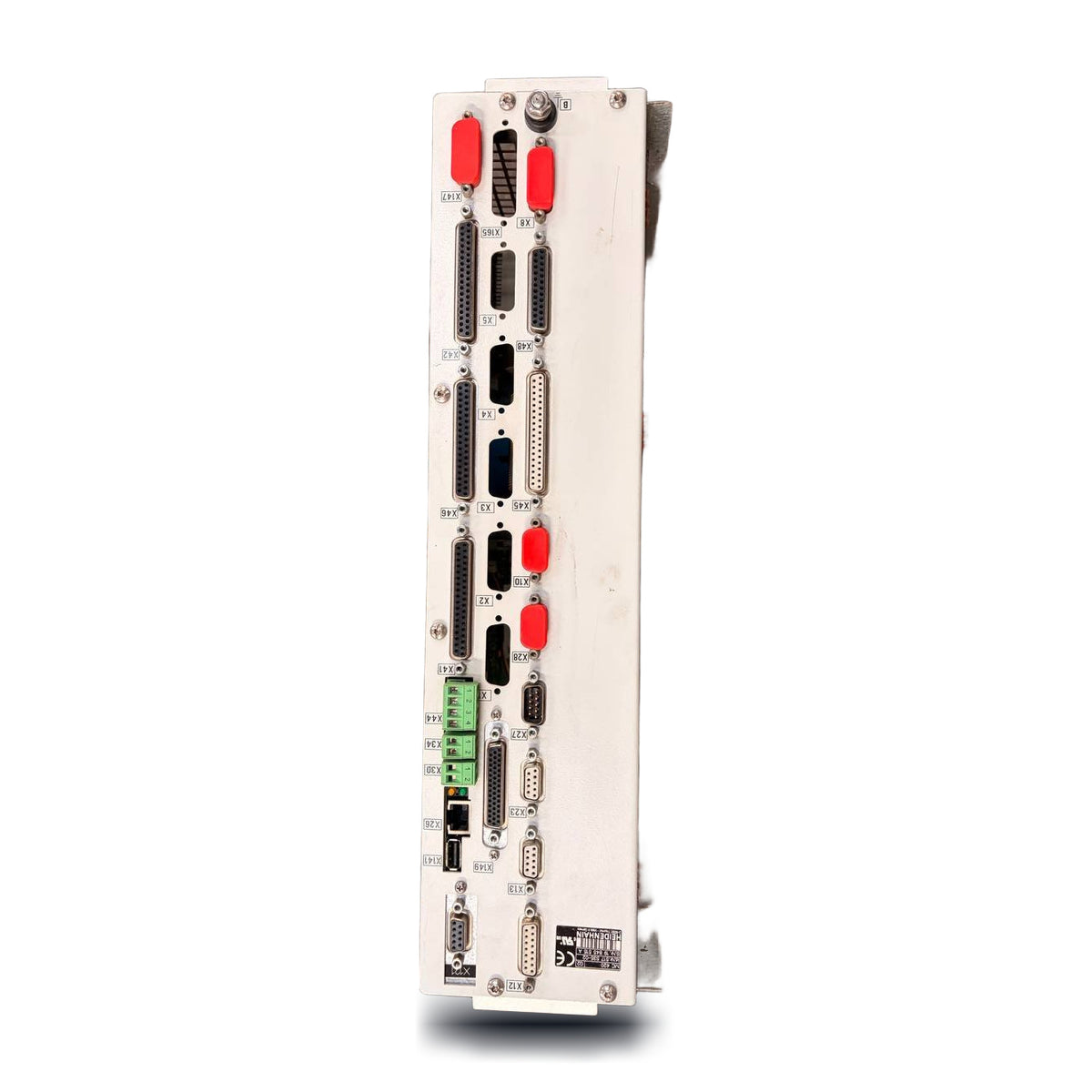

| Connector designators | X1 to X165, including X2, X3, X4, X5, X8, X10, X12, X13, X14I, X23, X26, X27, X28, X30, X34, X41, X44, X45, X48, X142, X146, X147, X165 |
| D-sub connectors | Multiple, including 9-pin, 15-pin, 25-pin and 37-pin types |
| Network | RJ45 Ethernet |
| USB | USB type-A port |
| Terminal blocks | Green pluggable screw terminals (4-pin; 3-pin and 2-pin also present) |
| Unused ports | Capped with red protective dust plugs |

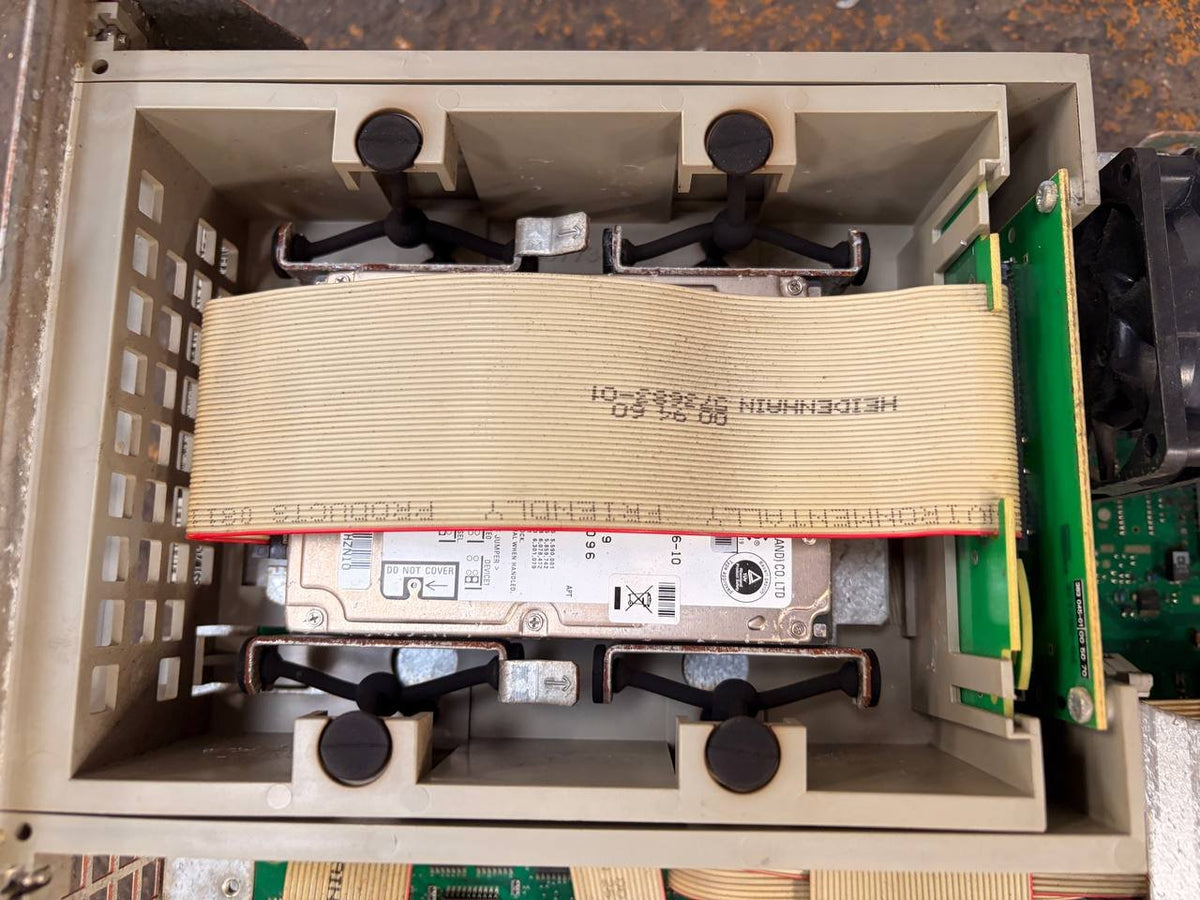

| Storage | 2x 2.5" hard disk drives in internal sub-rack, flat ribbon cable |

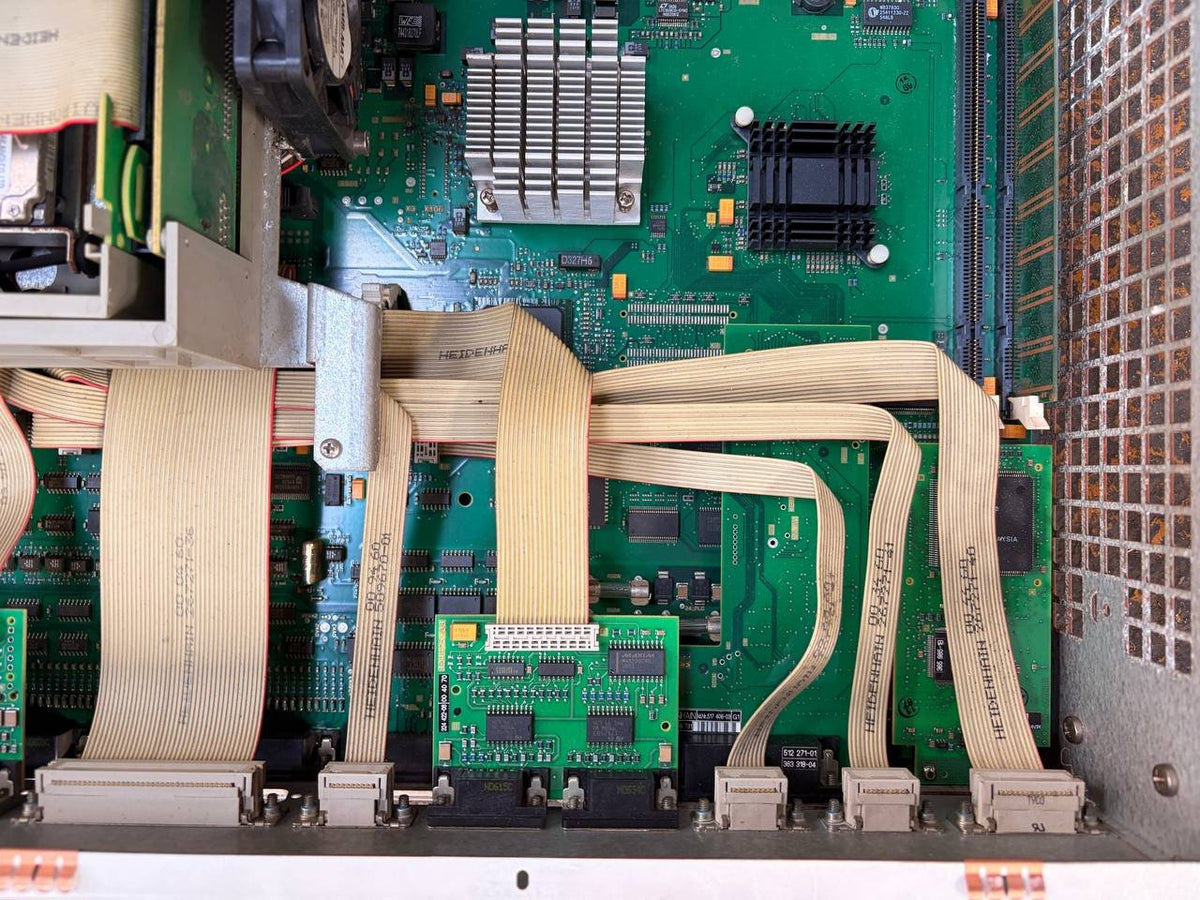

| Processor | Socketed, under finned aluminum passive heatsink |
| Secondary cooling | Second smaller black heatsink; chassis-mounted cooling fan |
| Memory slots | 2x SO-DIMM-style, unpopulated |
| Internal boards | 312 271-01, 383 318-04, 364 402-xx, 309 670-01, 309 672-0x |
| Internal cable | Ribbon cable marked Heidenhain 312 658-01 |

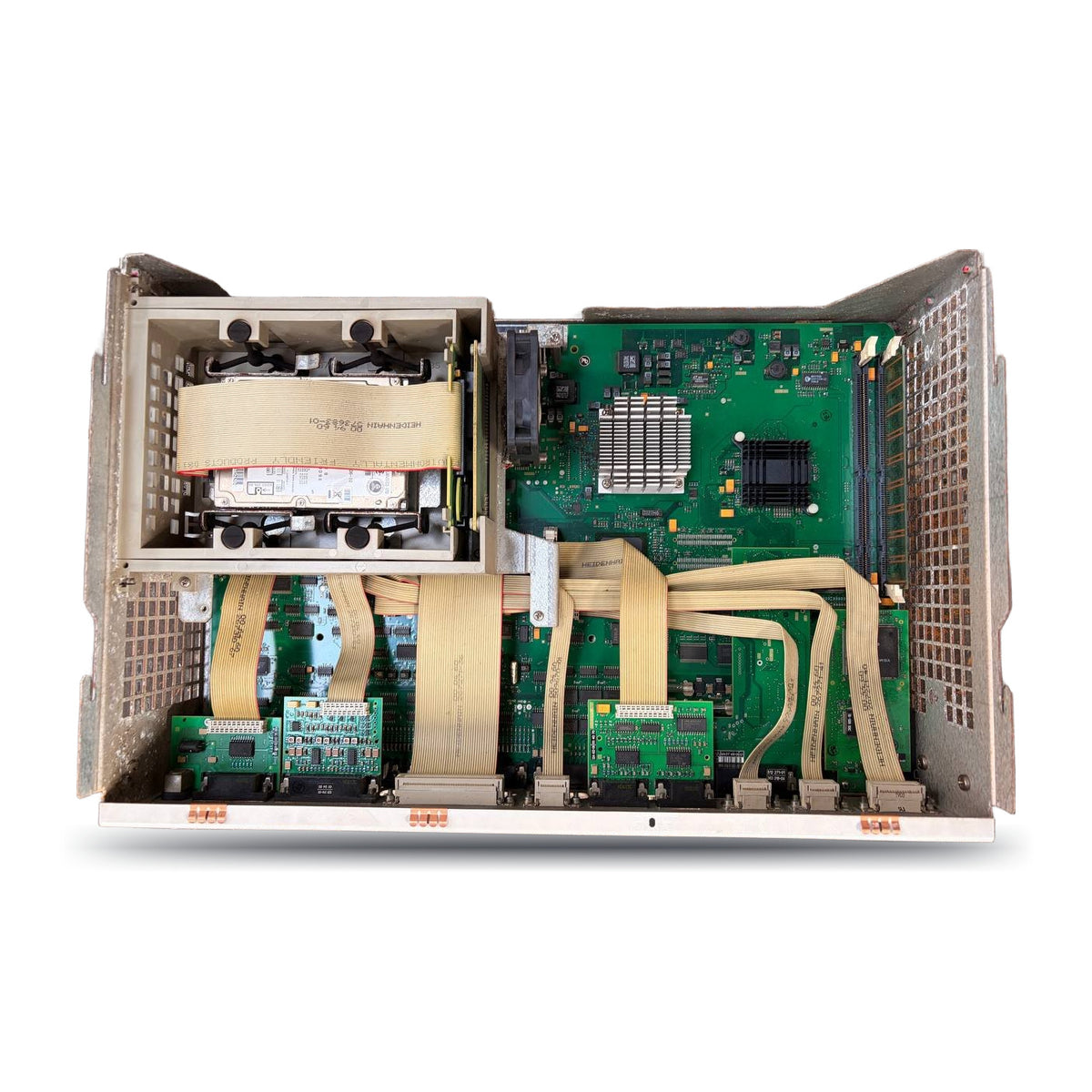

| Motherboard | Green PCB with interconnected daughterboards on beige ribbon cables |
| Condition | Used-Tested |
| Warranty | 14-30 days depend on the parts |
Condition & testing
Used, tested. Photos show light surface wear, dust and handling marks on the casing, with no visible corrosion or damage. Mounting screws are present and intact. The identification label on the right end panel is partially legible.
Compatibility
Heidenhain MC 420 G2 main computer for Heidenhain CNC controls using the MC 420 hardware.
What's included
1x Heidenhain 517 535-02 MC 420 G2 unit, with the two internal 2.5" hard disk drives as pictured. No cables or accessories.
Before you order
- Match the full ID number 517 535-02 and model MC 420 G2 against your existing unit's label.
- The two internal 2.5" hard disk drives hold software; the data and machine parameters from your old unit are not covered by this listing.
- Both SO-DIMM slots are unpopulated.
- No cables or connectors are included.
