HEIDENHAIN AE LB 326 scanning head (IdNr: 255337-15)
HEIDENHAIN AE LB 326 scanning head (IdNr: 255337-15)
6 in stock

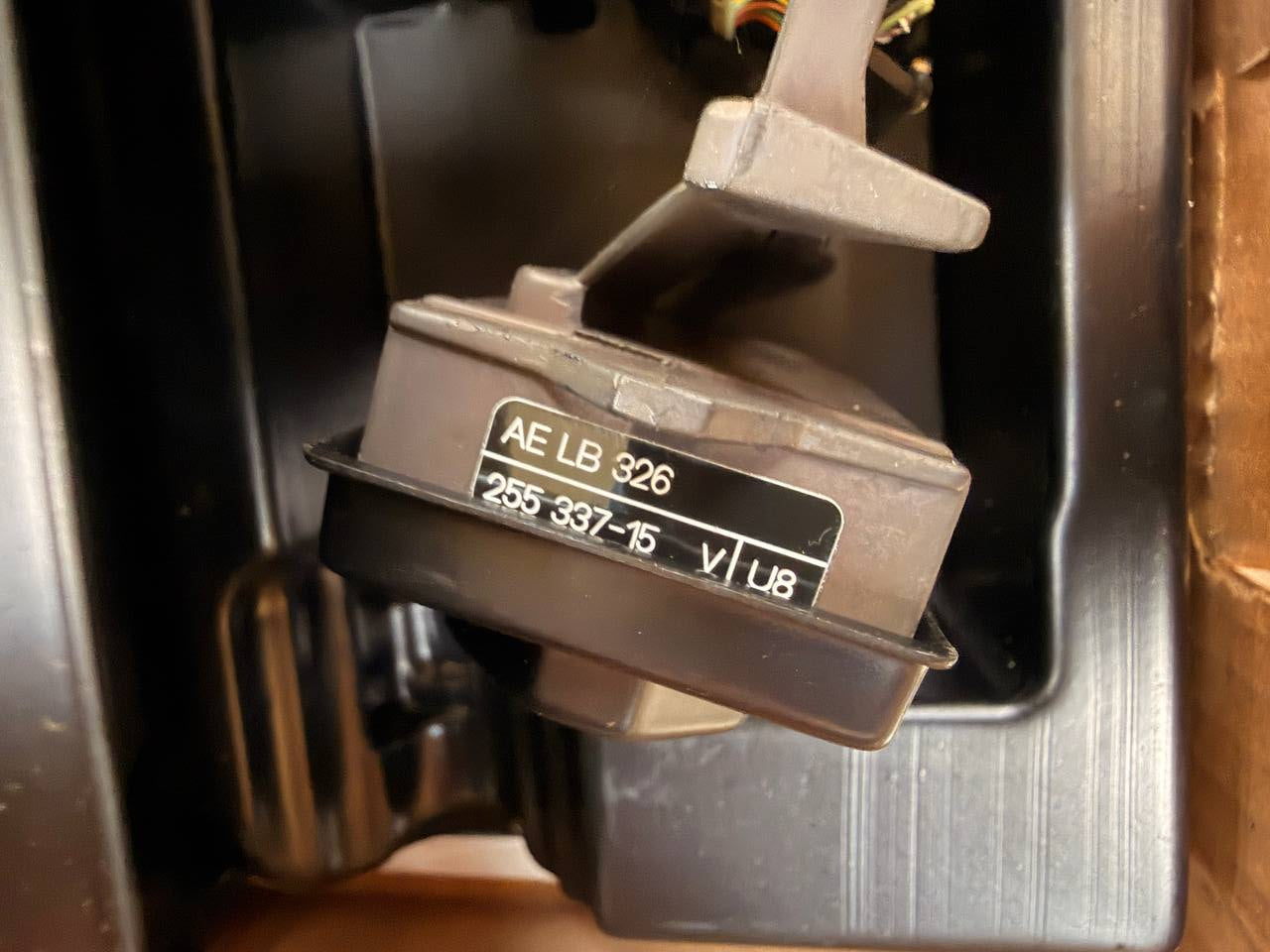

The HEIDENHAIN AE LB 326 (ID number 255337-15) is a scanning head for linear encoder systems used in CNC machines, coordinate measuring equipment, and precision motion control applications. This component reads position feedback from linear scales in the LB 300 series and transmits incremental signals to the machine controller. Unit specification from manufacturer label shows 100,000 Ω resistance, 55S08 configuration, and K20 designation. Scans magnetic or optical scales depending on system configuration. Also searched as AELB326.
Specifications
| Part Number | AE LB 326 |
| ID Number | 255337-15 |
| Resistance | 100,000 Ω |
| Configuration Code | 55S08 |
| Designation | K20 |

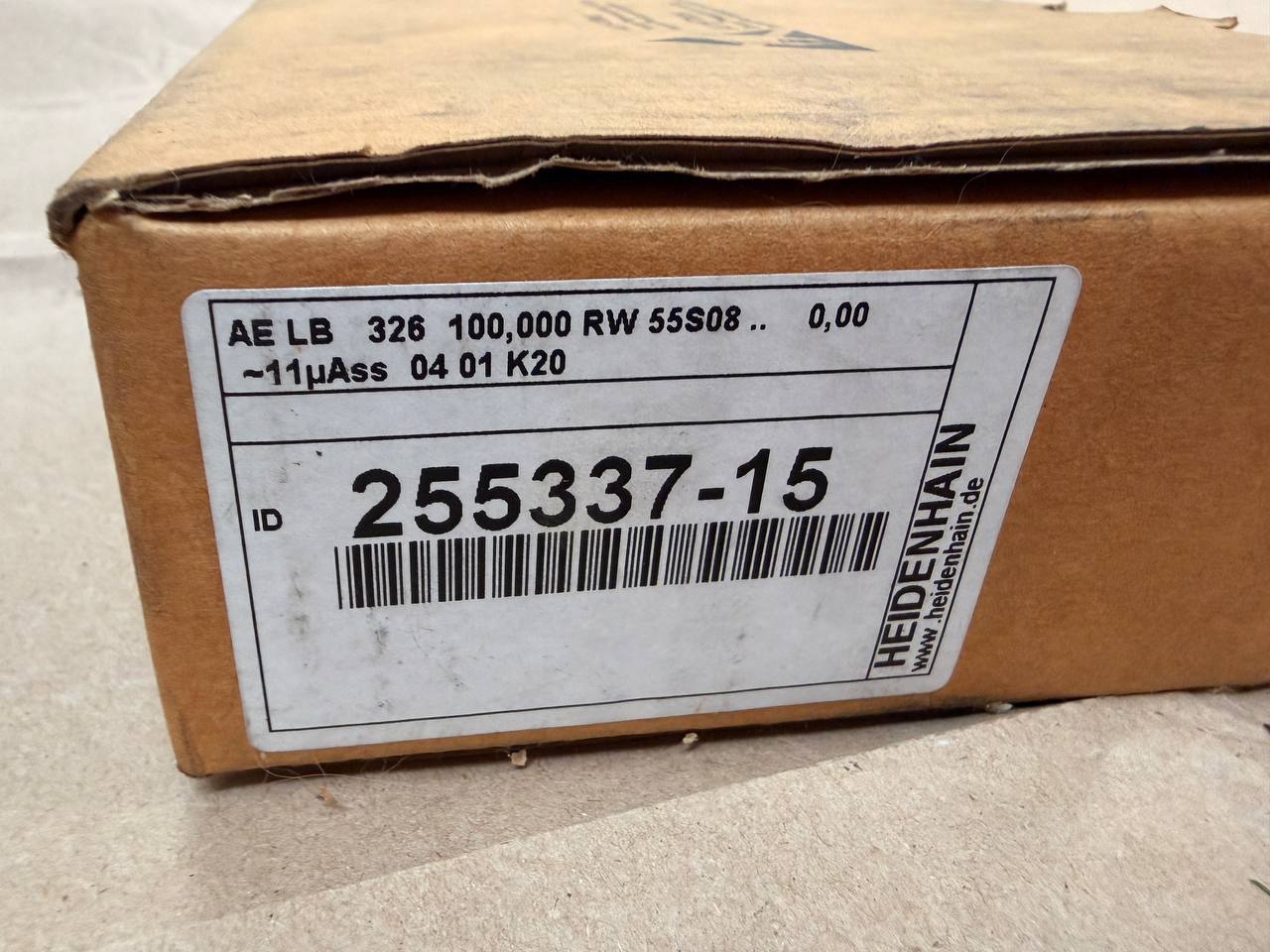

| Reference Code | 100,000 RW 55S08 -11µAss 04 01 K20 |
| Condition | New |
| Warranty | 14–30 days |
Condition & testing

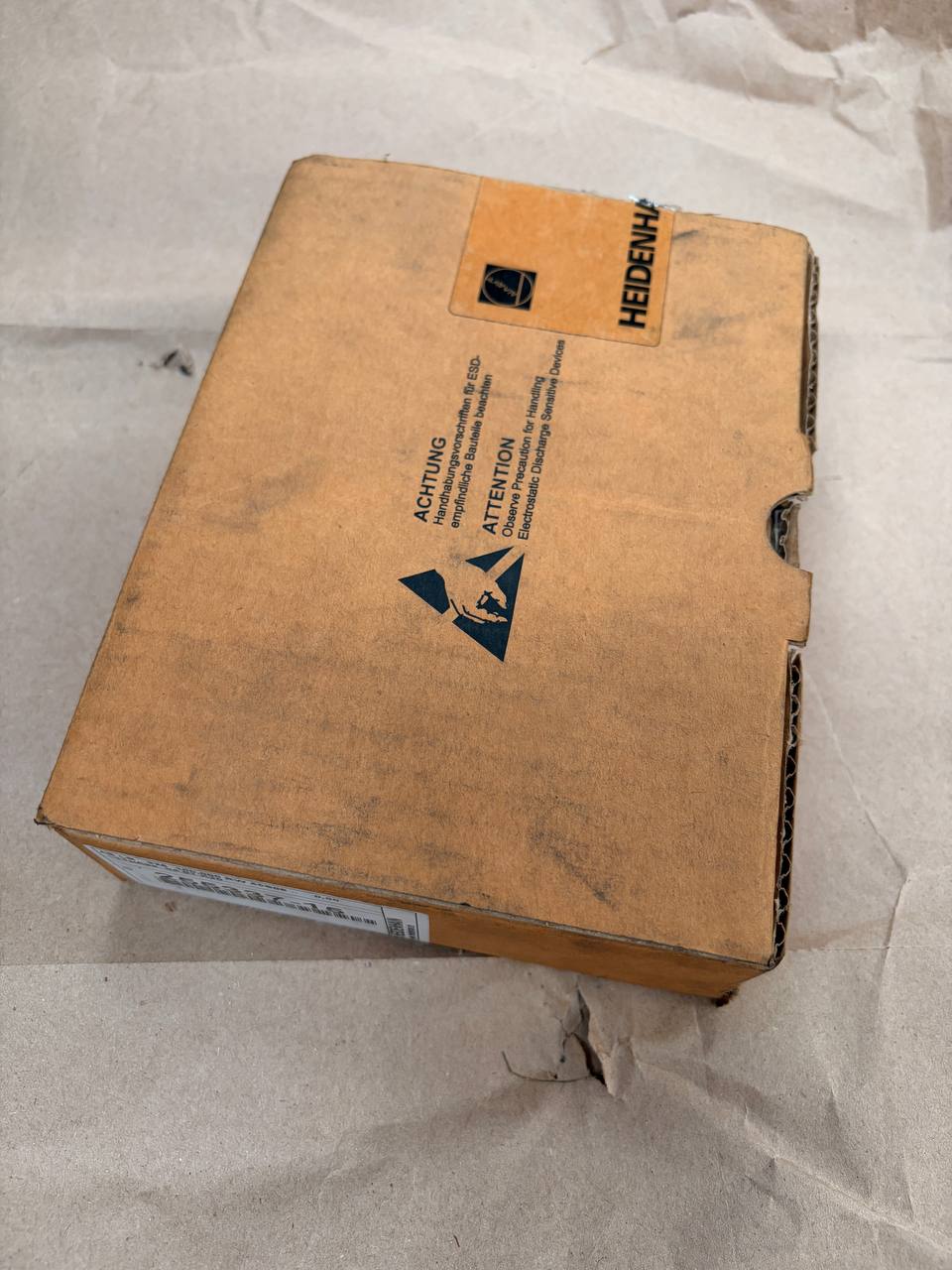

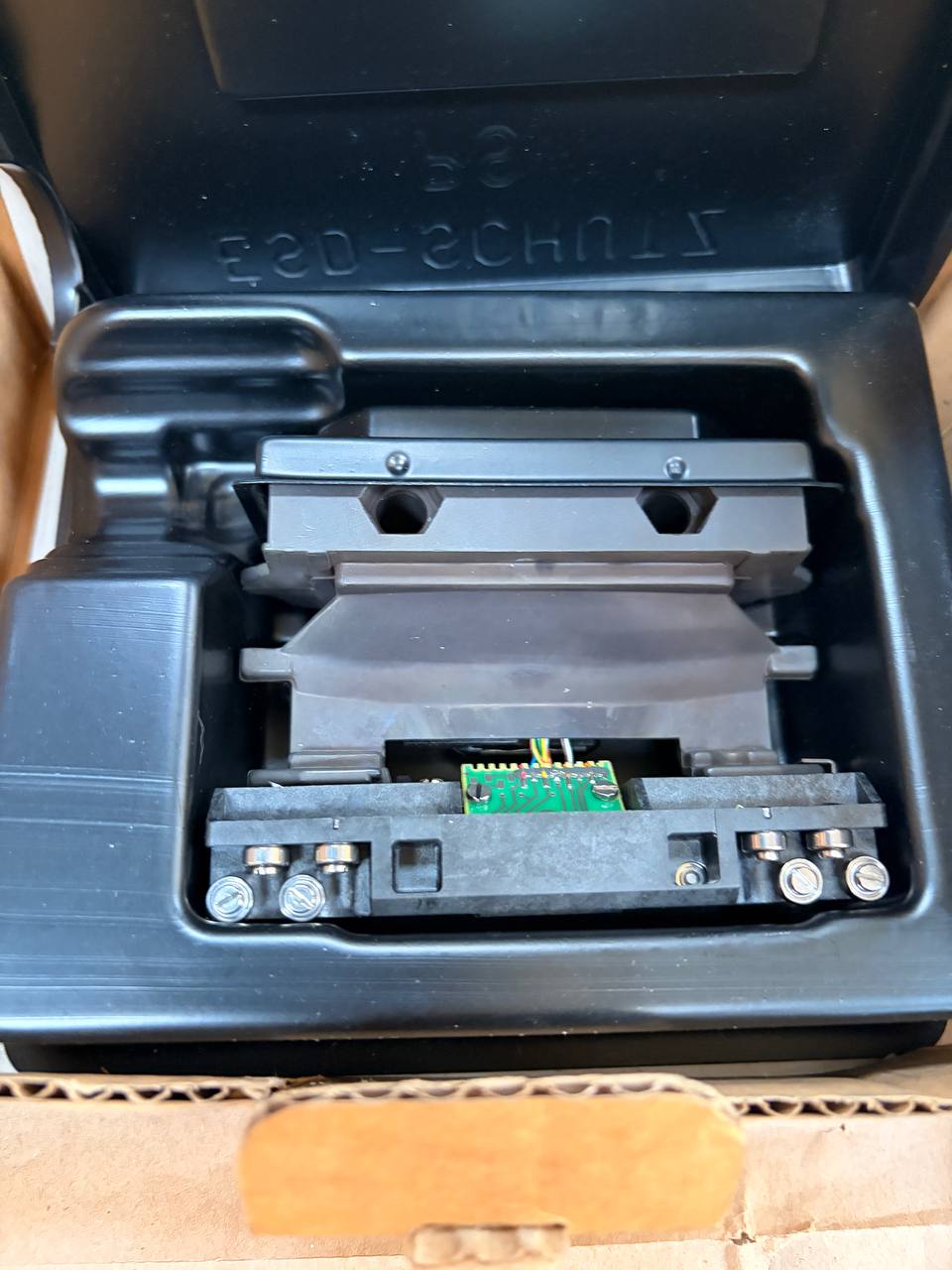

New open-box unit from surplus stock. Factory-sealed packaging opened for inventory verification. Scanner head shows no mounting wear or handling marks. Label data confirms 100,000 ohm resistance specification and full configuration marking intact. No runtime hours. Ready for installation in LB 326 systems.
Compatibility
AE LB 326 linear encoder systems
What's included
Scanner head unit only
