Heidenhain AE 403 Encoder Cable Assembly with Circular Connector
Heidenhain AE 403 Encoder Cable Assembly with Circular Connector
Bajas existencias: quedan 1

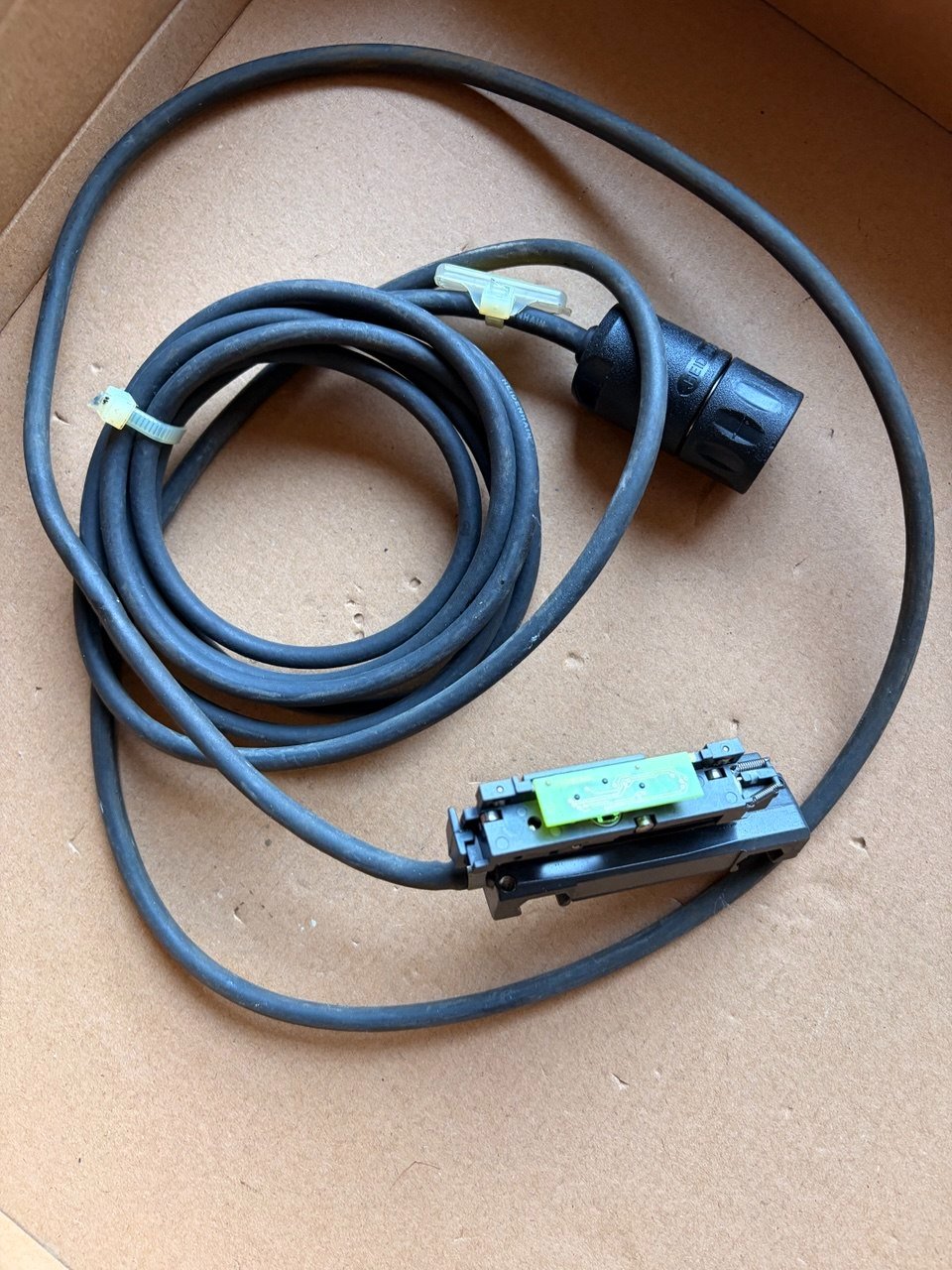

The Heidenhain AE 403 is a multi-conductor encoder cable assembly designed to interface Heidenhain linear and rotary encoders with machine control electronics. This cable bridges the encoder output to the controller input, carrying position feedback signals in CNC machines, coordinate measuring equipment, and precision motion systems. The assembly features a round multi-pin circular connector at one end for mating with the control electronics, and a card-edge module housing a signal conditioning PCB at the opposite end for encoder connection. The cable is marked with serial number 9 108 3211 S11 and carries a 'MAIN' designation tag, indicating its role as the primary feedback path in a multi-axis or networked encoder system. Cable length appears to be several meters, suitable for panel-to-machine routing in typical industrial installations.
Specifications
| Cable type | Multi-conductor shielded |

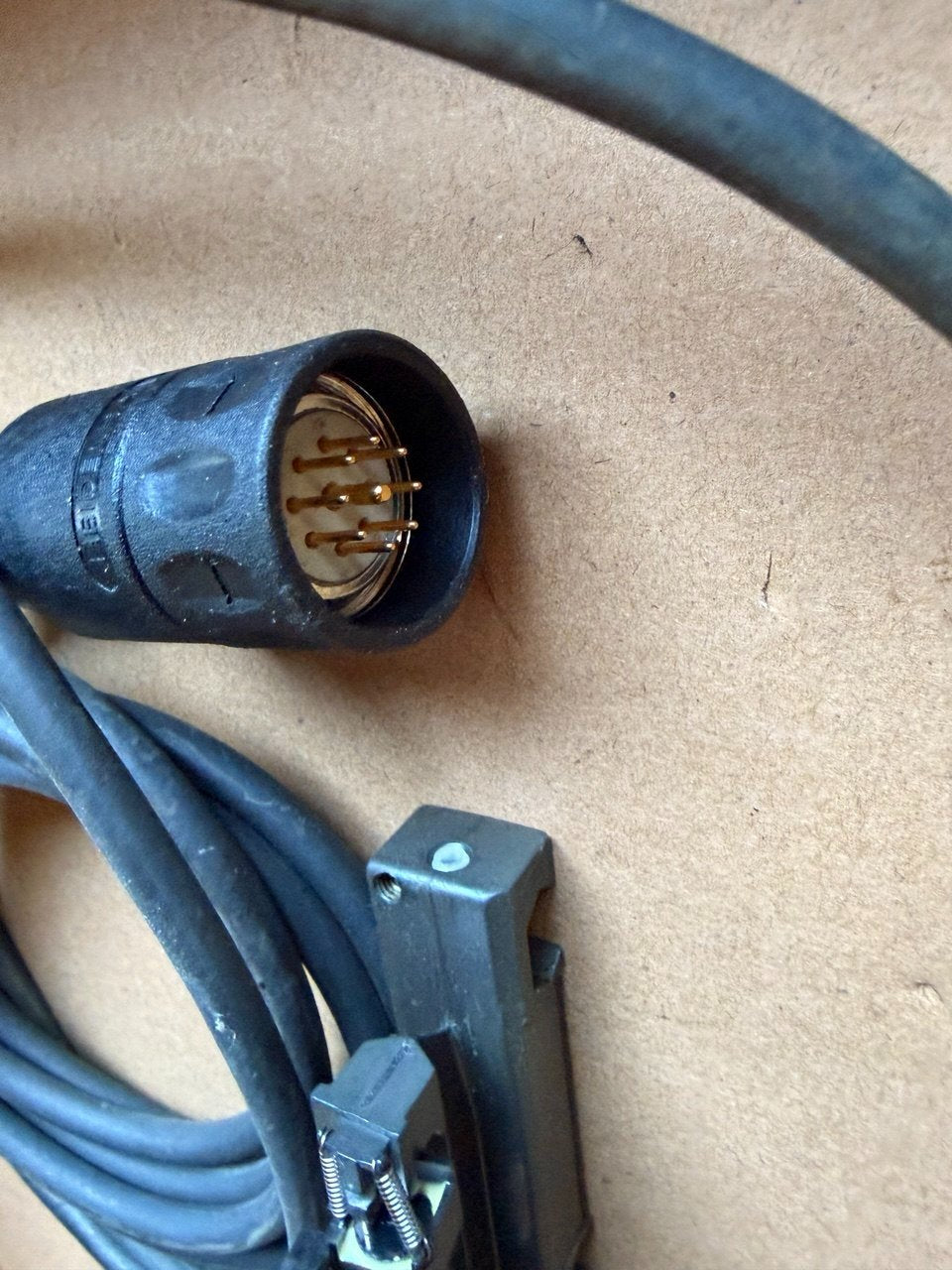

| Control-side termination | Circular connector, male, ~7–8 gold-plated pins, knurled locking collar |

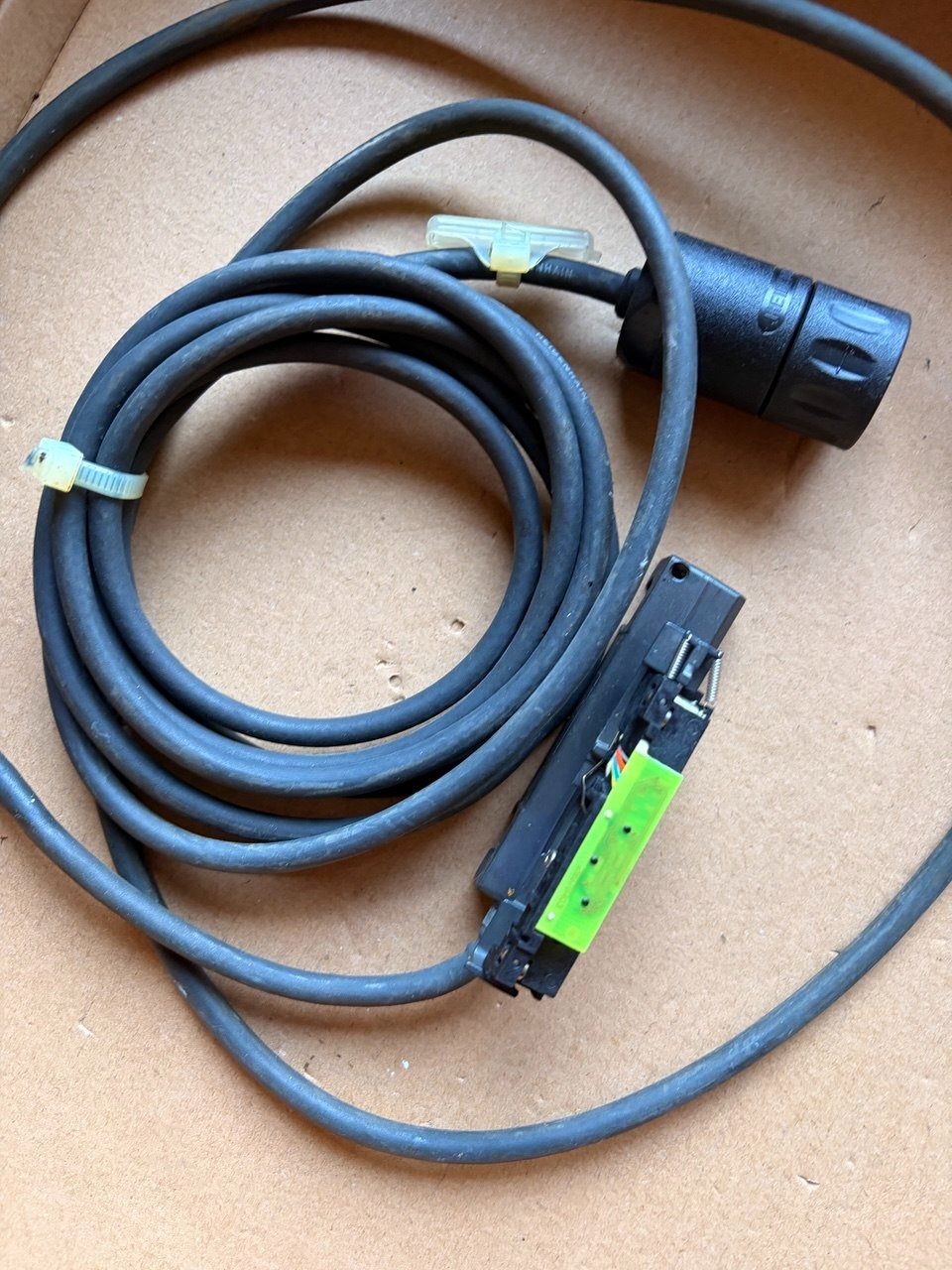

| Encoder-side termination | Card-edge module with PCB, spring latch, pin header contacts |
| Internal conductors observed | White, orange, red, blue, brown wires |
| Module mounting | Machined metal bracket with keyhole screw slot |

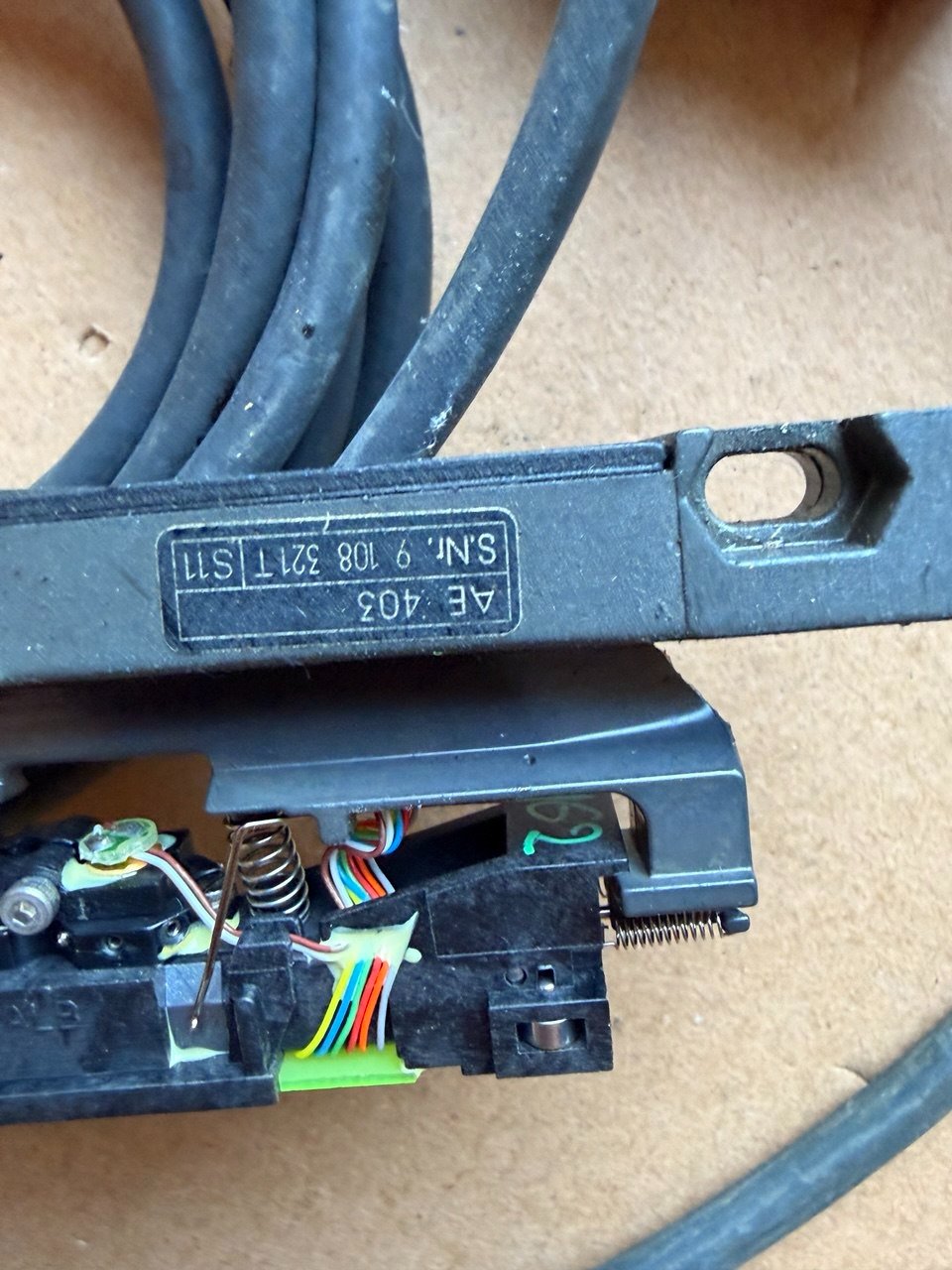

| Serial number | 9 108 3211 S11 |
| Cable marking | 'MAIN' (partially legible tag) |
| Condition | Used-Tested |
| Warranty | 14-30 days depend on the parts |
Condition & testing
This cable was removed from service and has not been electrically tested. The unit shows dust accumulation and handling wear consistent with prior installation. The encoder-end connector housing is opened, exposing internal wiring and solder points on the green PCB; the spring latch mechanism and alignment features remain intact. The control-end circular connector shell and locking collar are undamaged. Two white cable-tie labels are attached mid-run. Cosmetic condition reflects field use, but no broken conductors, cracked housings, or corroded contacts are visible in the provided images.
